Ultrasonic Flow

Ultrasonic Flow

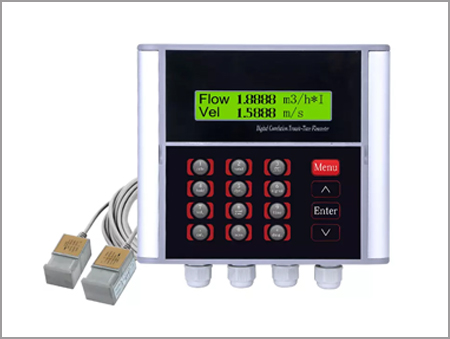

ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance.

Features

  • Pipe diameter: DN25-DN1200
  • Accuracy: ±1%
  • Power supply:  10～36VDC/1A
  • Output: 4～20mA, RS485

Specification

 Product Ultrasonic flowmeter
 Model SUP-1158-J
 Pipe size DN25-DN1200
 Accuracy ±1%
 Output 4～20mA, 750Ω
 Communication RS485, MODBUS
 Flow rate 0.01~5.0 m/s

 Working

 temperature

Convertor: -10℃～50℃；

Flow Transducer: 0℃～80℃
 Working humidity Convertor:99%RH；
 Display  20×2 LCD English letters
 Power supply 10～36VDC/1A
 Case material PC/ABS
 Line 9m（30ft）
 Handset weight Transmitter: 0.7Kg; Sensor: 0.4Kg
